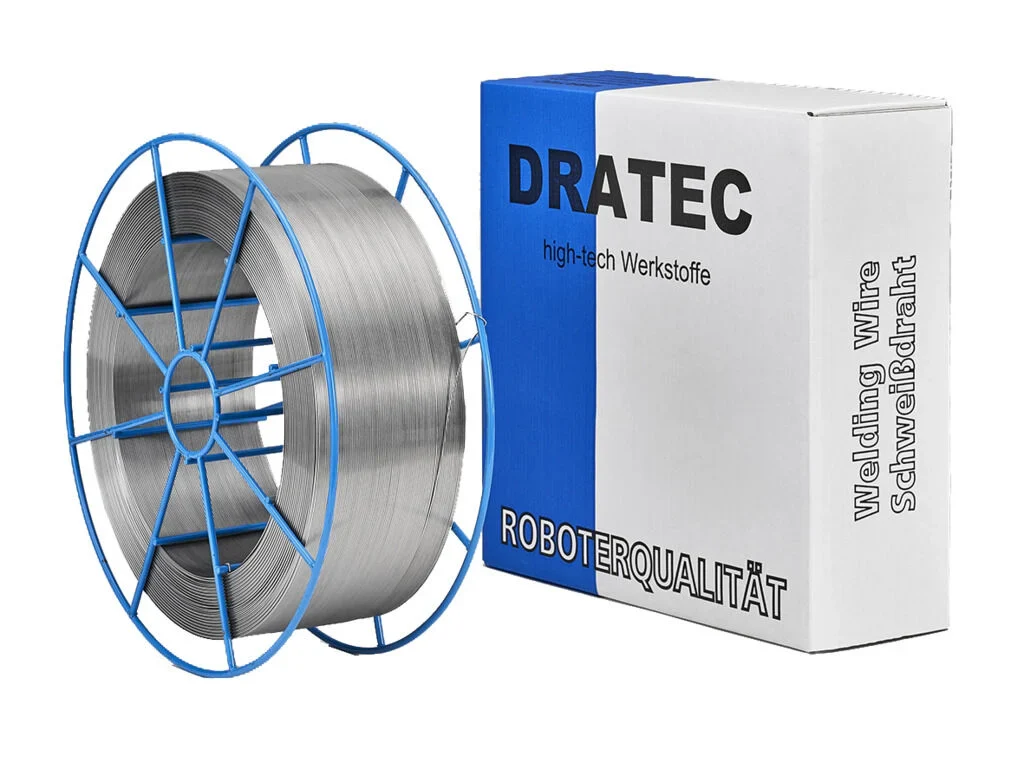

MIG MAG Edelstahl ER 307 Si Schweißdraht BS300 1,0 mm auf 15 kg Drahtrolle

Produktbild 1
Produktbild 2
Produktbild 3

MIG MAG Edelstahl ER 307 Si Schweißdraht BS300 1,0 mm auf 15 kg Drahtrolle

Technische Daten

  • Specifications: ISO 14343-A : G/W 18 8 Mn
    ISO 14343-B : SS307
    ASTM/AWS/SFA-5.9: ER 307
  • Application: CrNiMn-wire/rod for joining corrosion resistant,
    austenitic manganese steels, dissimilar steels and
    high-carbon steels for service temperatures from
    -120°C up to +300°C. Also for intermediate layers
    on armouring with hard alloys.



  • Chemical Composition Element by weight (%): C: 0,10 Si: 0,80 Mn: 7,00 Cr : 18,5 Ni: 8.5



  • Mechanical Properties:
 Yield Strength (Re) 400 N/mm²
Tensile Strength (Rm)  650 N/mm²
Elongation (A) (Lo=5do)  35%
Impact energy (Av) 80 J
High temp. 300°C
Low temp.  -120°C



  • Approvals: TÜV, DB, CE-Zeichen
$142.92

Original: $408.33

-65%
MIG MAG Edelstahl ER 307 Si Schweißdraht BS300 1,0 mm auf 15 kg Drahtrolle—

$408.33

$142.92

Produktinformationen

Versand & Rückgabe

Description

Technische Daten

  • Specifications: ISO 14343-A : G/W 18 8 Mn
    ISO 14343-B : SS307
    ASTM/AWS/SFA-5.9: ER 307
  • Application: CrNiMn-wire/rod for joining corrosion resistant,
    austenitic manganese steels, dissimilar steels and
    high-carbon steels for service temperatures from
    -120°C up to +300°C. Also for intermediate layers
    on armouring with hard alloys.



  • Chemical Composition Element by weight (%): C: 0,10 Si: 0,80 Mn: 7,00 Cr : 18,5 Ni: 8.5



  • Mechanical Properties:
 Yield Strength (Re) 400 N/mm²
Tensile Strength (Rm)  650 N/mm²
Elongation (A) (Lo=5do)  35%
Impact energy (Av) 80 J
High temp. 300°C
Low temp.  -120°C



  • Approvals: TÜV, DB, CE-Zeichen
